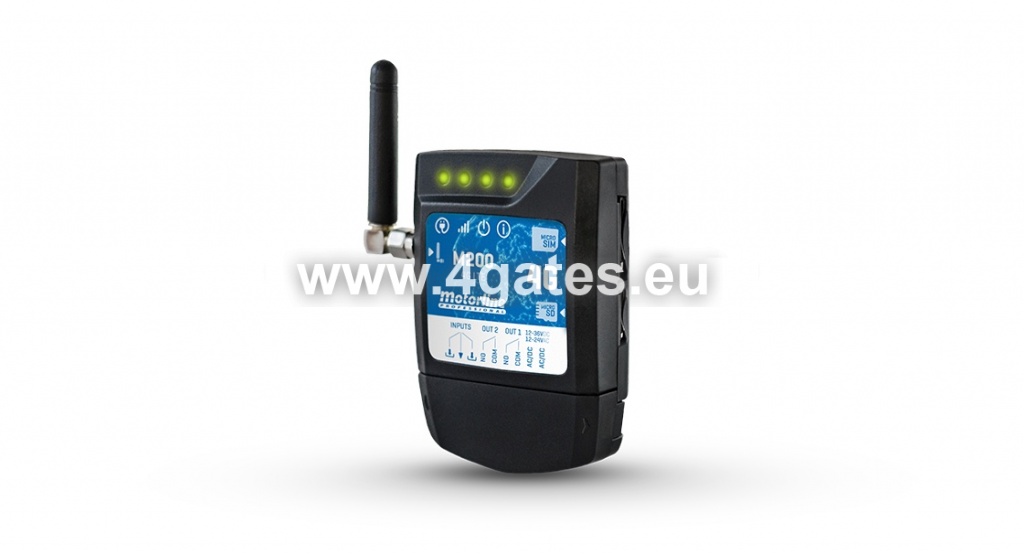

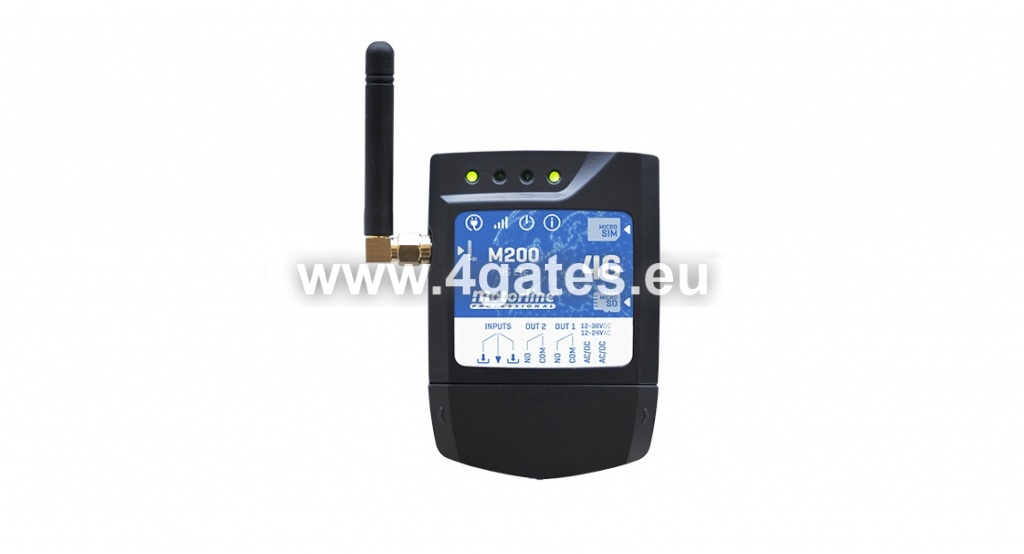

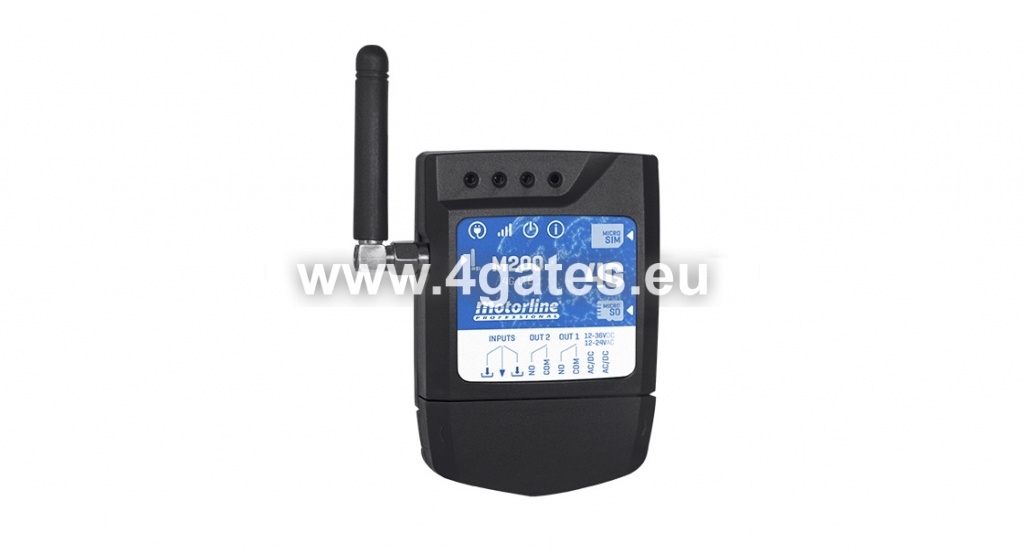

MOTORLINE PROFESSIONAL GSM control unit - console M200

Even without internet access, this new communicator with a 4G LTE network allows you to control devices remotely, via Bluetooth, phone call or SMS, faster and totally FREE.

In addition, it is possible to switch equipment that requires turning your system on or off remotely, such as: alarms, heat pumps and/or air conditioners.

Technical Characteristics

• Power supply :12-36Vdc / 12-24Vac
• Consumption:200mA in stand-by (2A when order is received)
• Maximum switching capacity: 1A to 60Vdc
• Operating temperature: -20°C ~ +55°C
• SIM card : microSIM (not included)
• SD card : microSD (not included)
• Battery: CR1225 battery – 3v – 48mah
• 4G LTE/GSM

Frequencies
Quad-band 850/900/1800/1900MHz
LTE-FDD B1, B3, B5, B7, B8, B20, B28

Transmission power
GSM850/EGSM900: Class 4 (33 dBm ±2 dB)
DCS1800/PCS1900: Class 1 (30 dBm ±2 dB)
LTE-FDD: Class 3 (23 dBm ±2 dB)

Maximum user capacity
1000 contacts

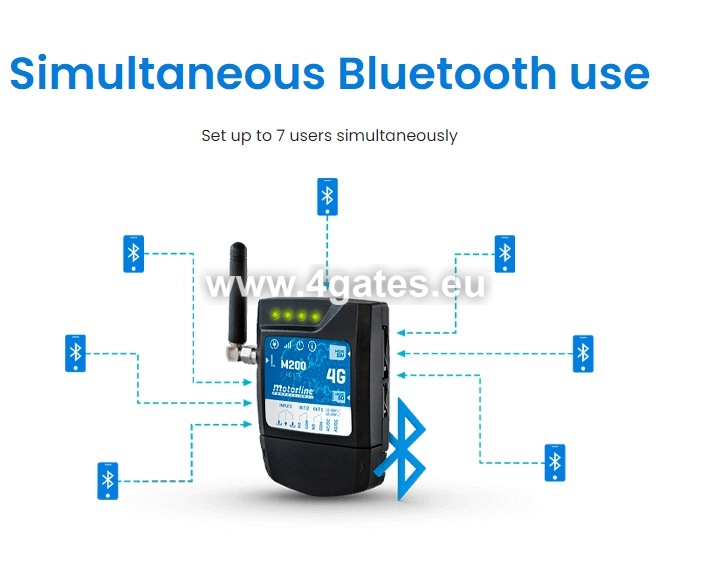

BLUETOOTH

• Bluetooth version 5.0
• Frequency range: 2402 – 2480 MHz
• Output power : 18 dBm
• Communication distance : <30m
